Chain Link Fence

Chain link wire mesh also called diamond mesh fences.The chain link wire mesh is formed by twisting wire raw material together. There are also two kinds of edges which are folded edge and twisted edge. The raw materials can be galvanized steel wire or PVC coated steel wire. It is normally used in livestock,gardens, sports yard, industrial sites, roads and events etc.

Wechat / WhatsApp No : 15710318353
E-Mail: sales@chinafencefactory.com

Send Email Us Download As PDF

Product Details

Product Tags

Product details

Selvedge style

(1)Knuckle-Knuckle (KK): knuckled at both ends

(2)Knuckle-Barbed (KB): knuckled at the bottom and barbed selvedge at top

(3)Barbed-Barbed (BB):barbed selvedge at both ends

Read More About chain fence

Product specification

opening	1″	1.5″	2″	2-1/4″	2-3/8″	2-1/2″	2-5/8″	3″	4″
	25mm	40mm	50mm	57mm	60mm	64mm	67mm	75mm	100mm
wire diameter	18# -13#		16# -8#					18# -7#
	1.2mm-2.4mm		1.6mm-4.2mm					2.0mm-5.0mm
length of the roll	0.50m-30m
width of the roll	0.5m-4.0m
materials	Galvanized wire
material and specification can be customized

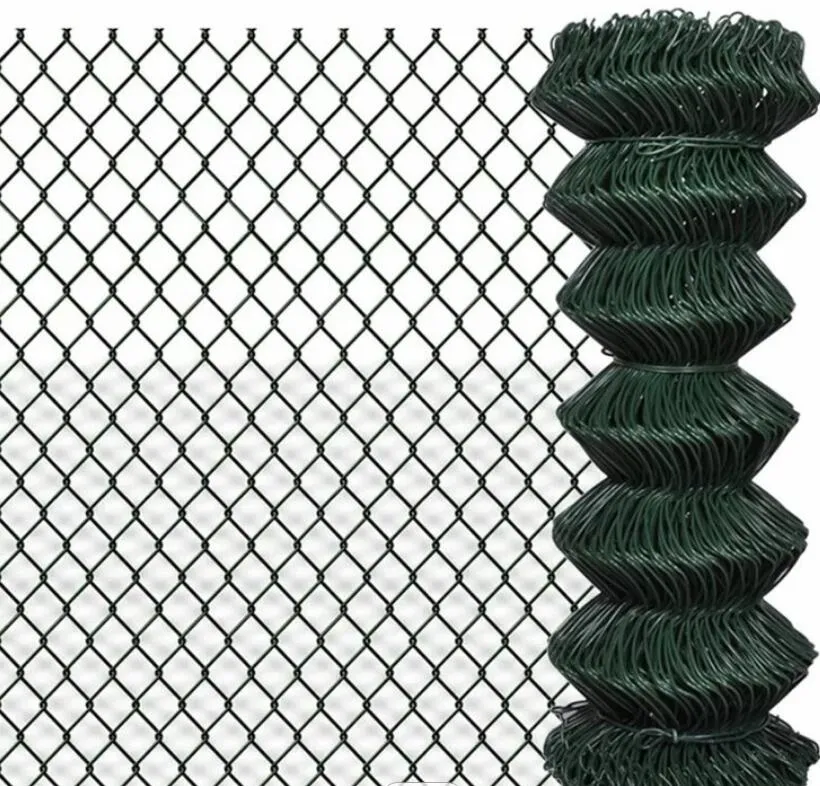

PVC coated chain link fence
Opening	Wire Gauge	Width	Length
60x60mm	2.0/3.0mm	0.5-5m	1.0-50m
50x50mm	1.8/2.8mm	0.5-5m	1.0-50m
50x50mm	2.0/3.0mm	0.5-5m	1.0-50m
Remarks: other specifications produced according to your order
